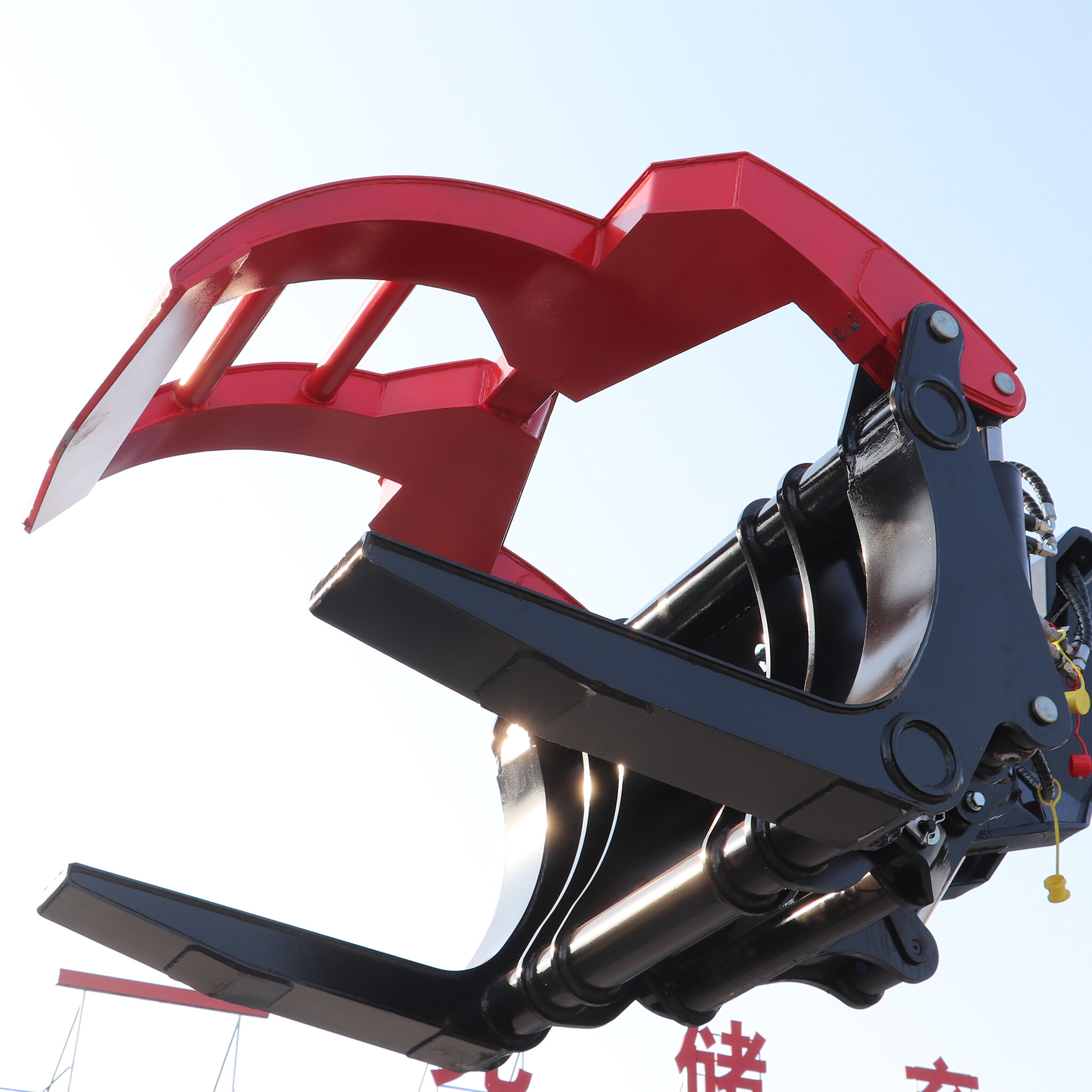

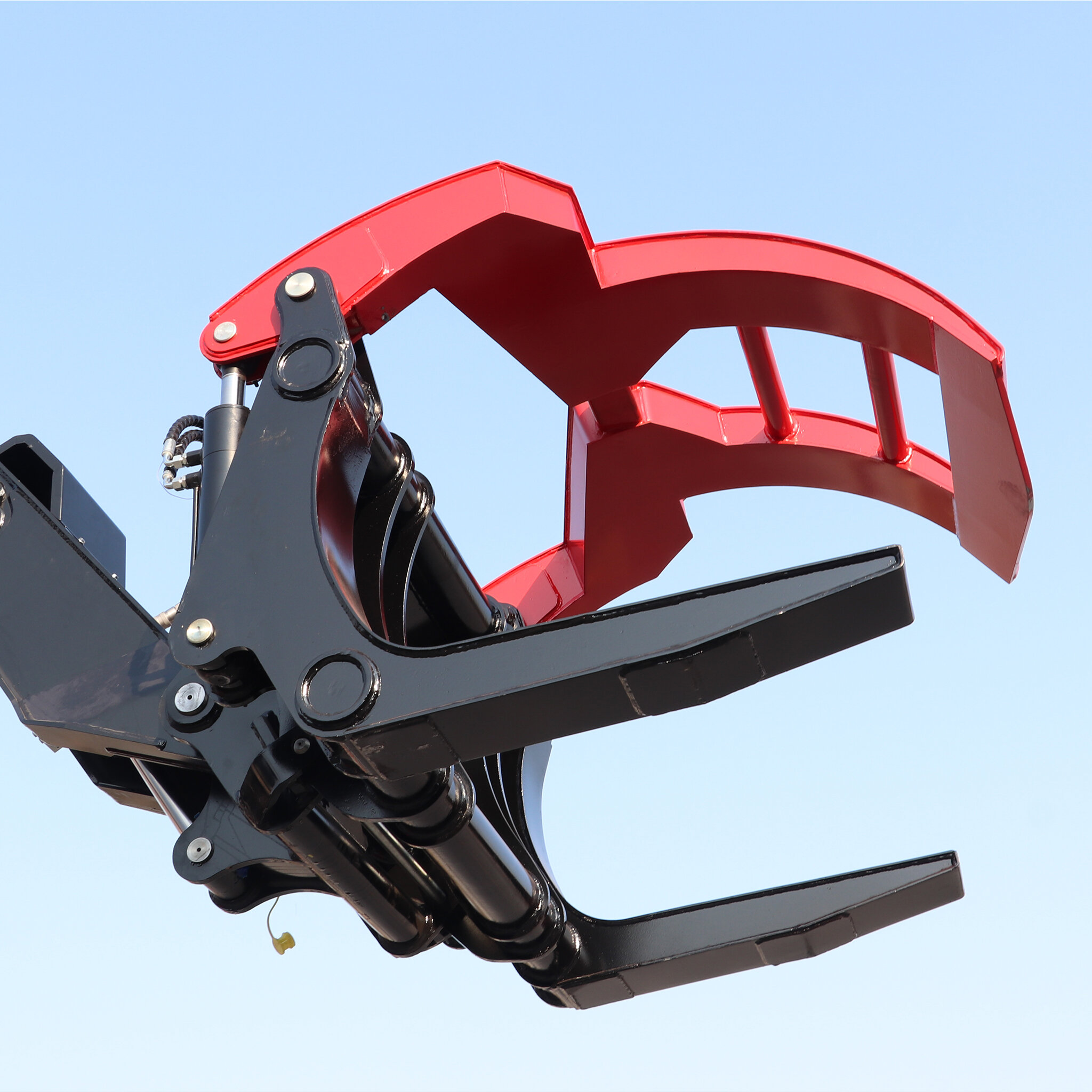

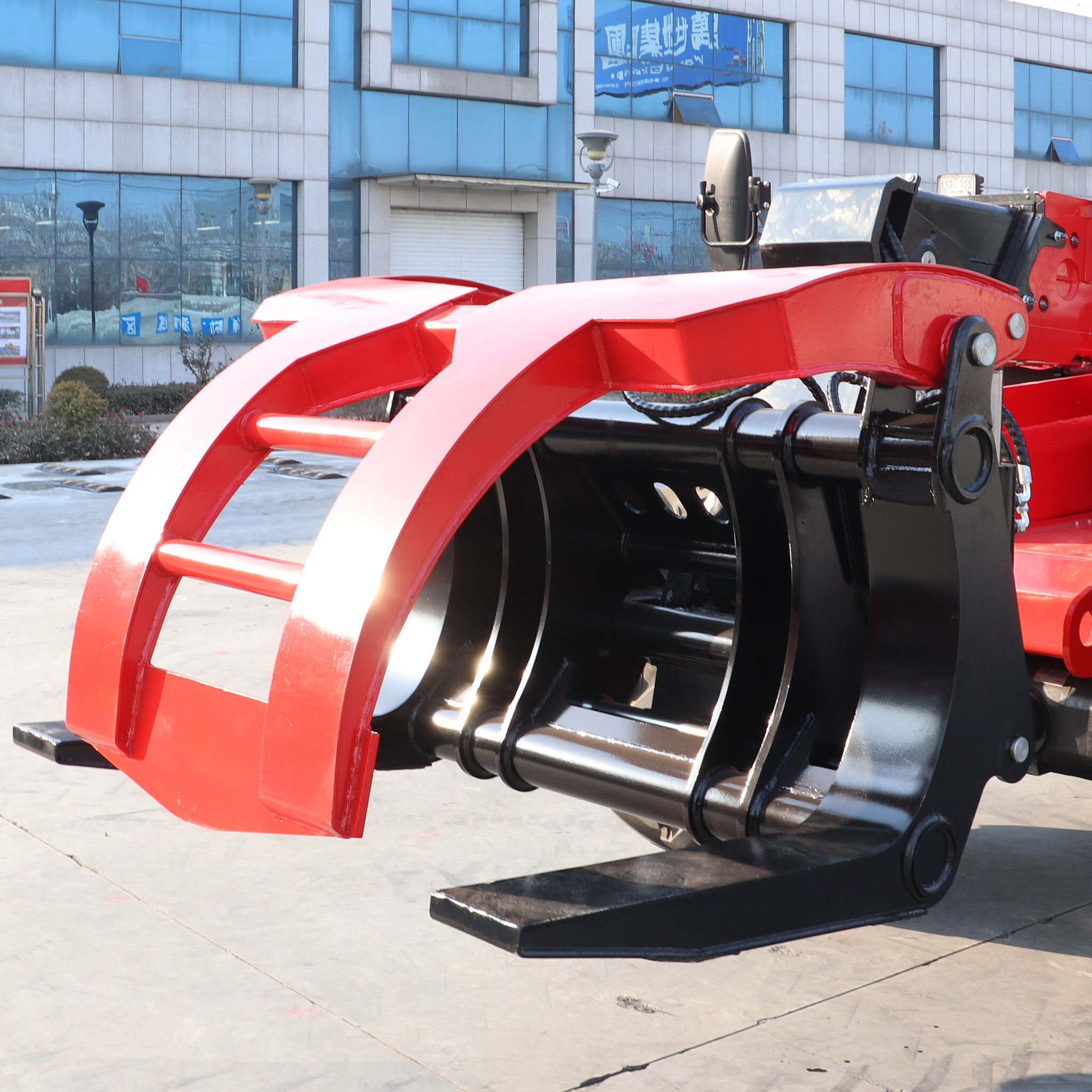

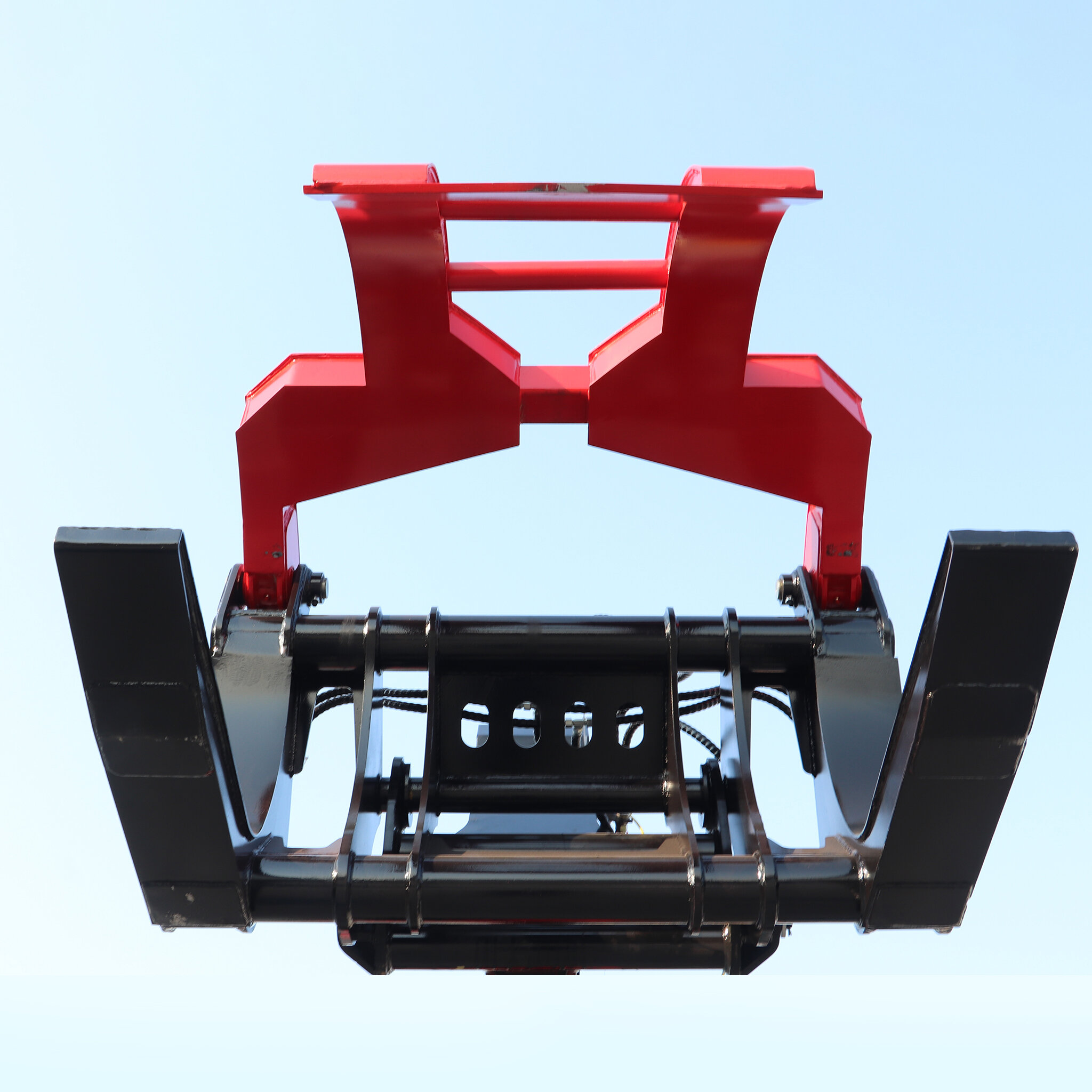

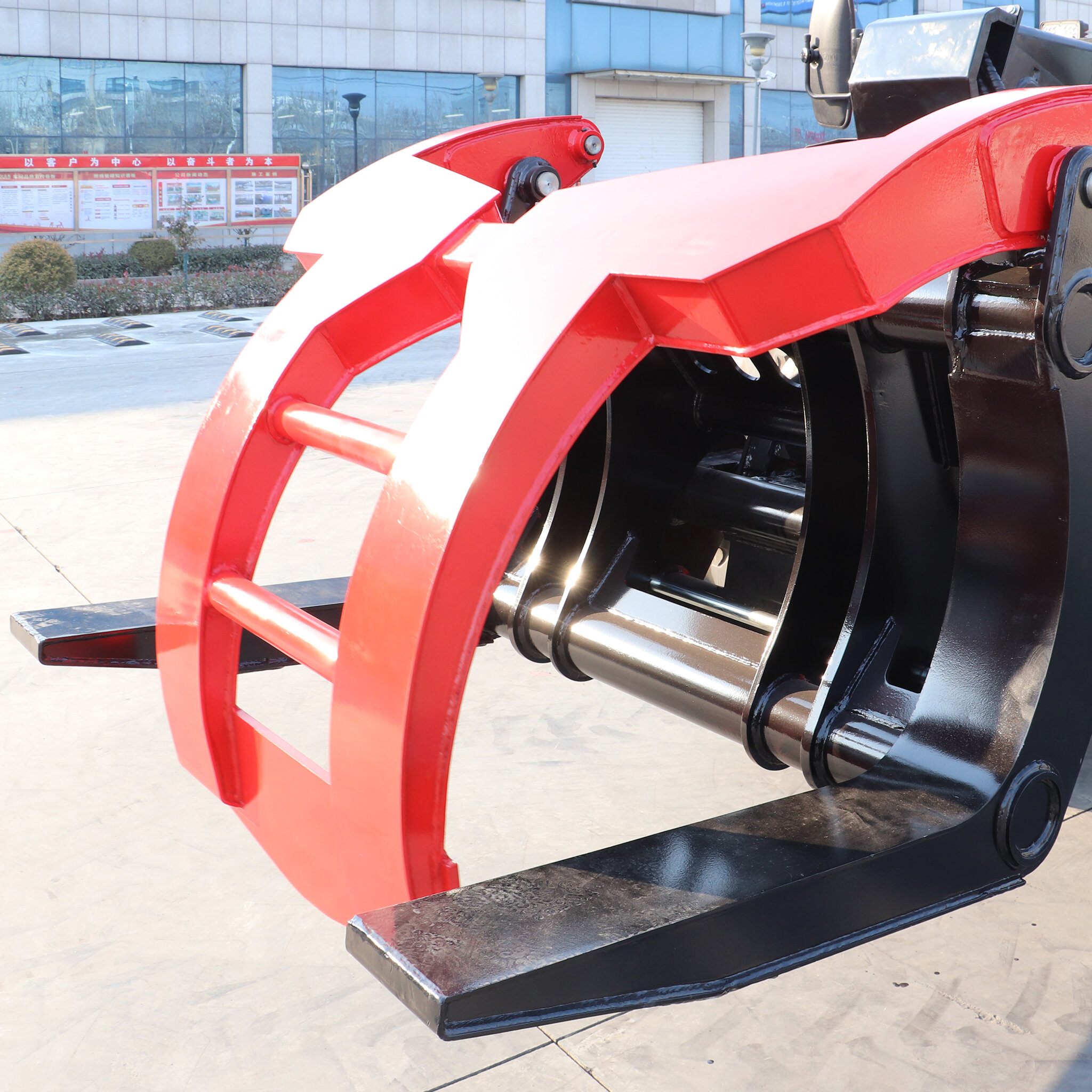

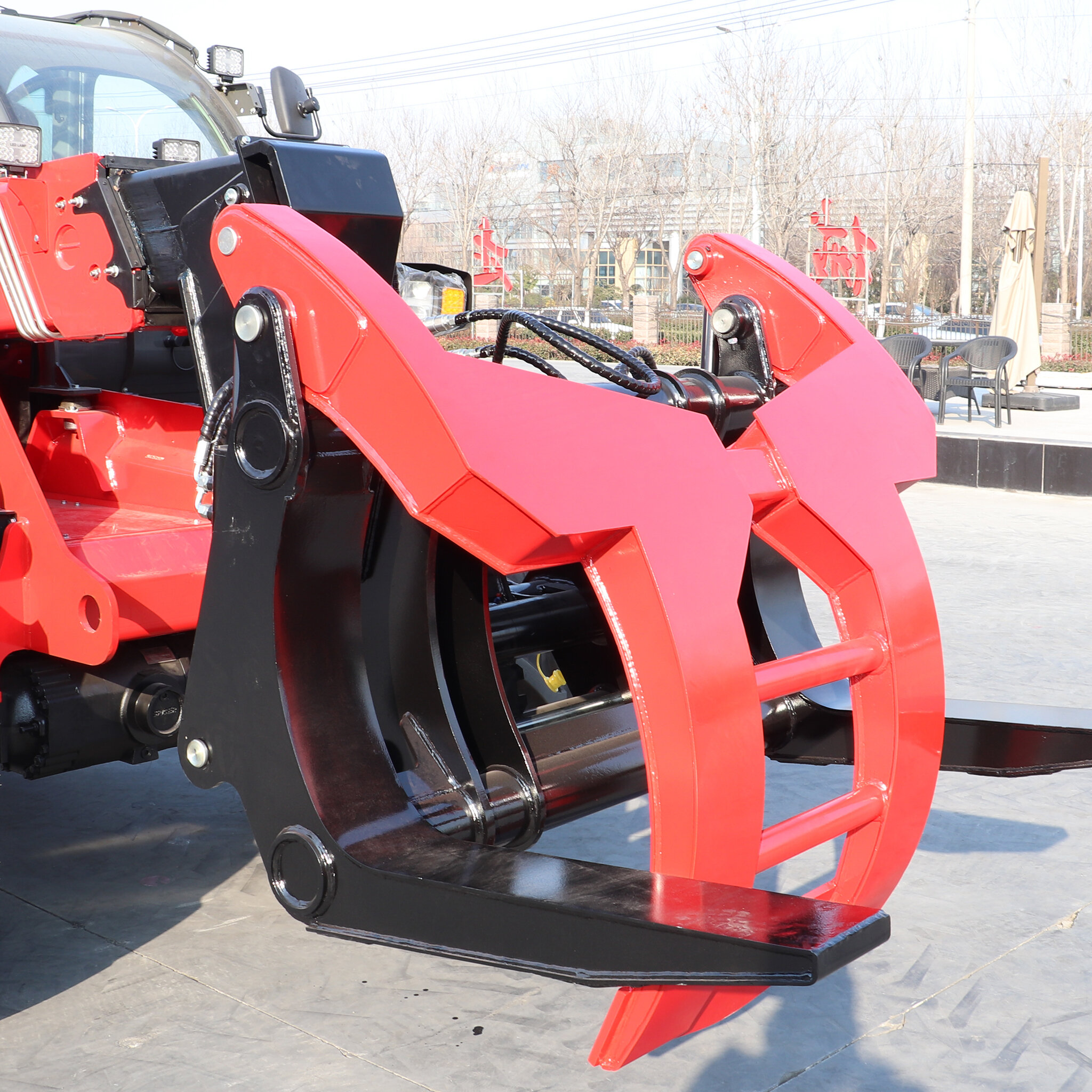

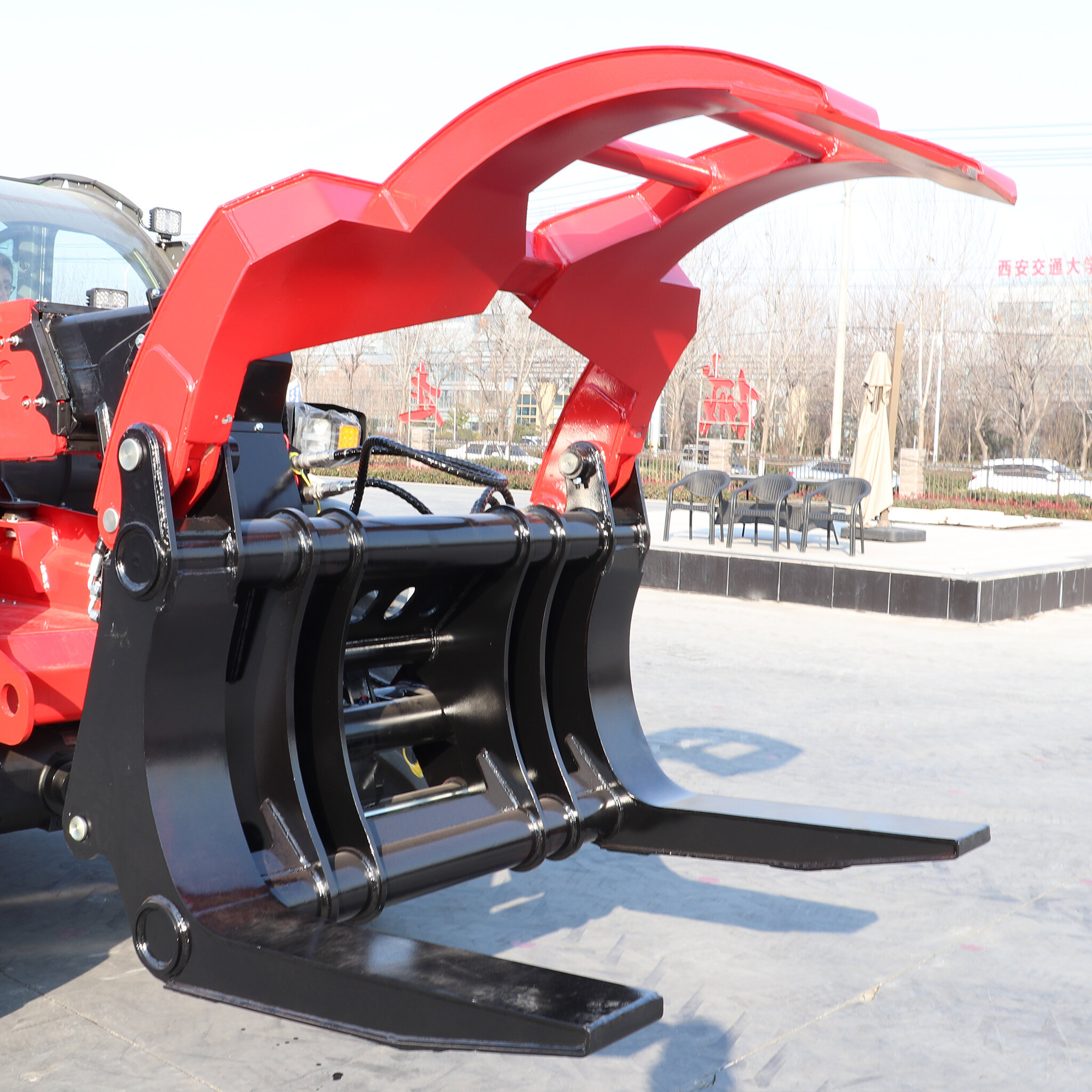

Wood Clamp

Ask for details

详情请咨询

Hydraulically driven with a large opening and closing angle and stable clamping force, it safely grabs logs, wood waste, and other materials. Suitable for material transfer operations in forest farms and wood processing plants.

Specifications

Overall Width1500 mm
Overall Length1250 mm
Overall Height1130 mm
Maximum Opening1244 mm
Maximum Enclosure1000 mm
Minimum Enclosure340 mm
Weight (incl. mounting hardware)645 kg
Maximum Allowable Pressure25 MPa
Applicable Flow Rate50–70 L/min
